KH Series Linear Bearing

- KH Series -


Linear Bearing

KH Series

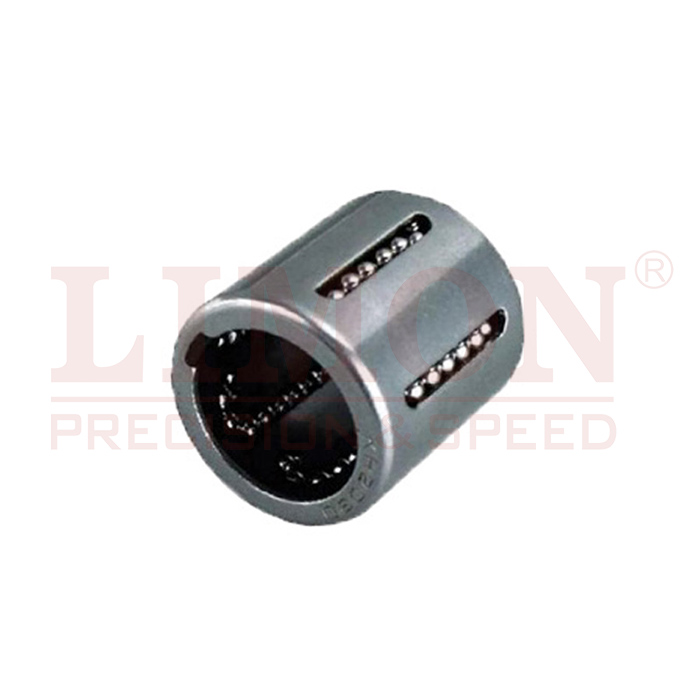

The LIMON linear motion bearing consists of an outer cylinder, ball retainer, balls and two end rings. The ball retainer which holds the balls in the recirculating trucks in held inside the outer cylinder by end rings.
Those parts are assembled to optimize their required functions. T he outer cylinder is maintained sufficient hardness by heat treatment, therefore if ensures the bearings projected travel life and satisfactory durability.
The ball retainer is made from steel or synthetics resin. The steel retainer has high rigidity.
The synthetics resin retainer can reduce running noise. The user can select the optimum type for meeting the user's service conditions.
Those parts are assembled to optimize their required functions. T he outer cylinder is maintained sufficient hardness by heat treatment, therefore if ensures the bearings projected travel life and satisfactory durability.
The ball retainer is made from steel or synthetics resin. The steel retainer has high rigidity.
The standard type of LIMON linear motion bearing can be loaded from any direction .Precision control is possible using only the shaft supporter,and the mounting surface can be machined easily.


Description

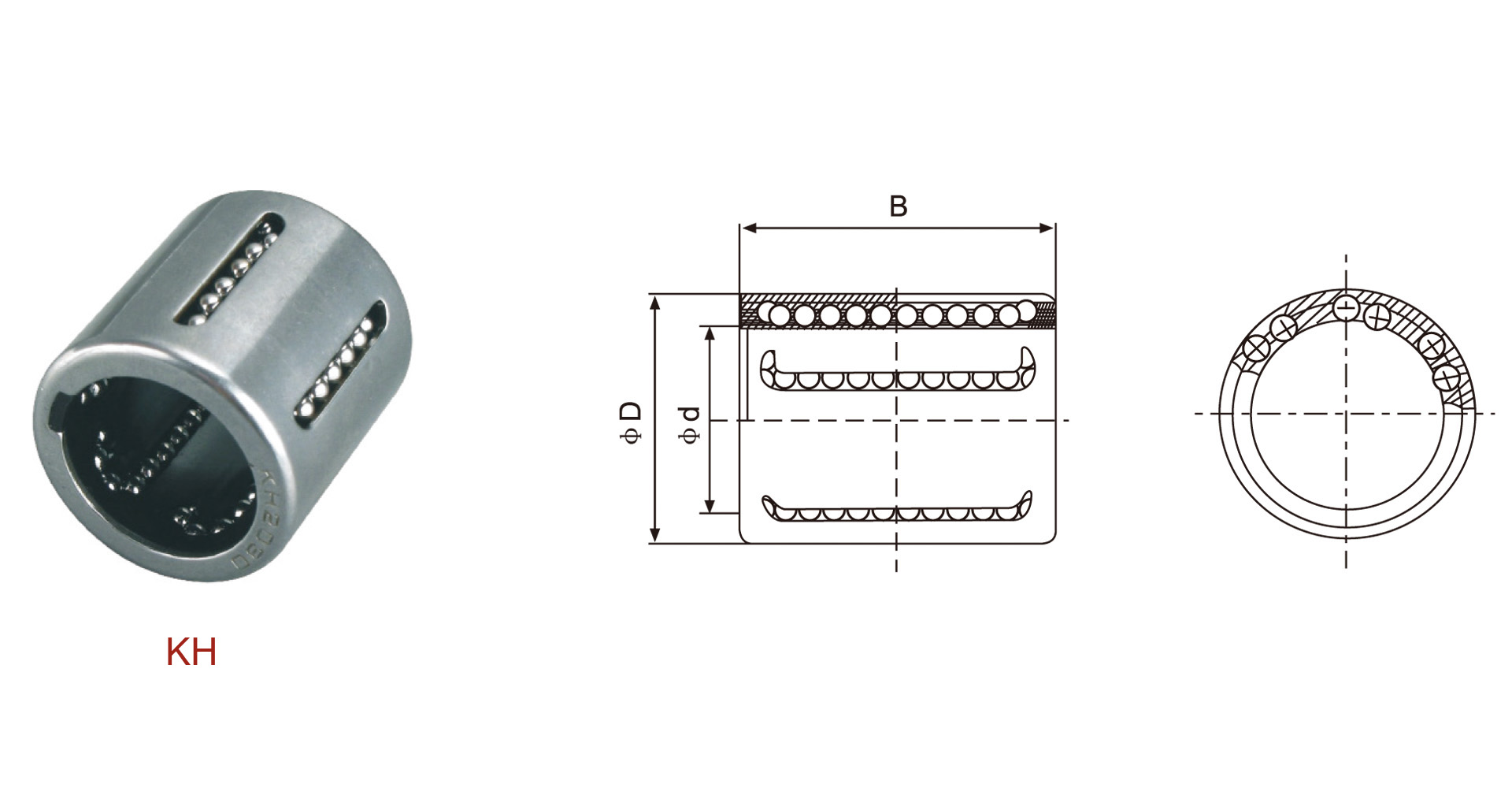

Data Sheet of Linear Bearings KH Series

Part No.

Main Dimensions

Basic Load Rating CN

Basic Load Rating CoN

Weight (g)

Φd

ΦD

B

KH-0622

6

12

22

400

239

7

KH-0824

8

15

24

435

280

12

KH-1026

10

17

26

500

370

14.5

KH-1228

12

19

28

620

510

18.5

KH-1428

14

21

28

620

520

20.5

KH-1630

16

24

30

800

620

27.5

KH-2030

20

28

30

950

790

32.5

KH-2540

25

35

40

1990

1670

66

KH-3050

30

40

50

2800

2700

95

KH-4060

40

52

60

4400

4450

182

KH-5070

50

62

70

5500

6300

252
