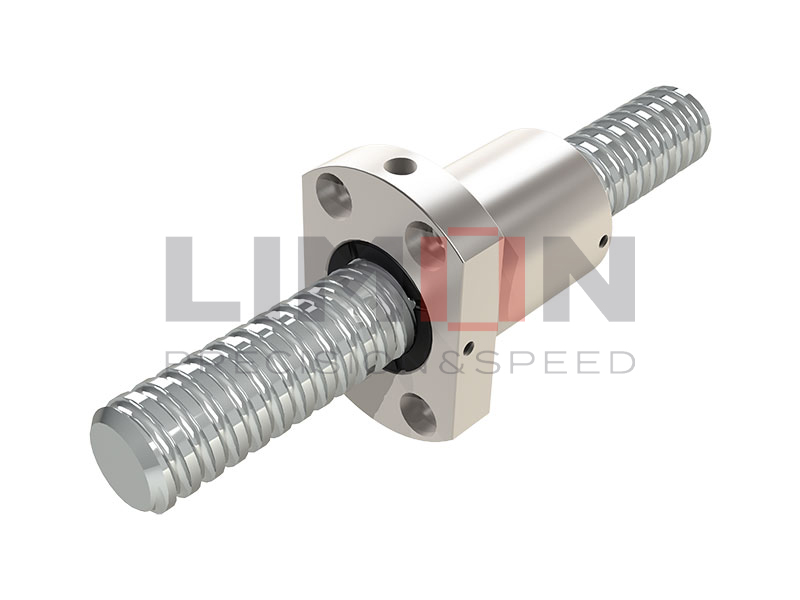

SFI Ball Screw Nut

- Ball Screw Nut -


SFI Series

Applicable industries:Automation industry, Semi-conductor industry, Industrial machine, Medical industry, Green energy industry, Machine tool, Automated storage and retrieval system and etc.

(1)High Reliability
LIMON applies stringent quality control standards on every production process.With proper lubrication and use, trouble-free operation for an extended period of time is possible.
(2) The high efficiency of ball screw is vastly superior than conventional screws. It takes less than 30% torque to make the linear motion into rotary motion.
(3) High Rigidity and Preload
The ball screw of LIMON is designed with Gothic arch groove,which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.


Description

Circulation type

Model

Characteristic

Single

Nut

Double Nuts

Internal Circulation type

SFK SFU

SFI SCI

DFU

DFI

•Dedicated diameter of screw takes only little space.

•Applicable to those with smaller lead / the outside diameter of the screw

External Circulation type

SFV XFV

DFV

•Economy

•Applicable to larger lead and diameter.

•Applicable for high loading purpose.

End-caps Circulation type

SFS SFY

DFS

•Suitable for high speed positioning

Size Table of SFI Screws



Model No.

d

l

Da

Dimension

Load Rating



D

A

B

L

W

H

X

Y

Z

Q

n

Ca(kgf)

Coa(kgf)

SFI1605-4

16

5

3.175

30

49

10

50

39

34

4.5

8

4.5

M6x1

1x4

1127

2288

SFI1610-3

10

3.175

34

58

10

57

45

34

5.5

9.5

5.5

M6x1

1x3

909

1848

SFI2005-4

20

5

3.175

34

57

11

51

45

40

5.5

9.5

5.5

M6x1

1x4

1268

2991

SFI2505-4

25

5

3.175

40

63

11

51

51

46

5.5

9.5

5.5

M8x1

1x4

1420

3872

SFI2510-4

10

4.762

46

72

12

85

58

52

6.5

11

6.5

M8x1

1x4

2415

5543

SFI3205-4

32

5

3.175

46

72

12

52

58

52

6.5

11

6.5

M8x1

1x4

1604

5103



SFI3210-4

10

6.35

54

88

15

90

70

62

9

14

8.5

M8x1

1x4

3924

9152



SFI4005-4

40

5

3.175

56

90

15

55

72

64

9

14

8.5

M8x1

1x4

1786

6512



SFI4010-4

10

6.35

62

104

18

96

82

70

11

17.5

11

M8x1

1x4

4417

11669



SFI5010-4

50

10

6.35

72

114

18

96

92

82

11

17.5

11

M8x1

1x4

4947

15488



SFI6310-4

63

10

6.35

82

131

22

98

107

95

14

20

13

M8x1

1x4

5586

20417



SFI8010-4

80

10

6.35

105

150

22

98

127

115

14

20

13

M8x1

1x4

6217

26049



Note:with sign ☆ can poduce left helix
