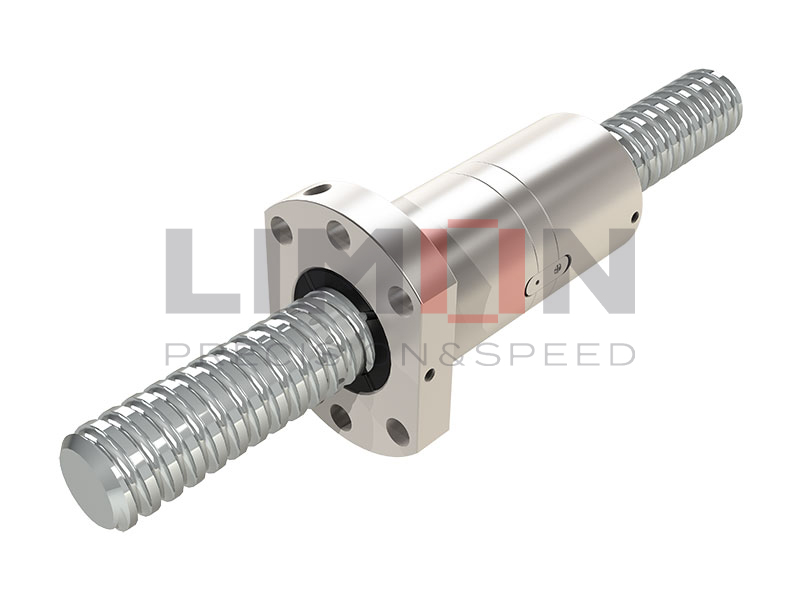

DFU Ball Screw Nut

- Ball Screw Nut -


DFU Series

Applicable industries:Automation industry, Semi-conductor industry, Industrial machine, Medical industry, Green energy industry, Machine tool, Automated storage and retrieval system and etc.

(1)High Reliability
LIMON applies stringent quality control standards on every production process.With proper lubrication and use, trouble-free operation for an extended period of time is possible.
(2) The high efficiency of ball screw is vastly superior than conventional screws. It takes less than 30% torque to make the linear motion into rotary motion.
(3) High Rigidity and Preload
The ball screw of LIMON is designed with Gothic arch groove,which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.


Description

Circulation type

Model

Characteristic

Single

Nut

Double Nuts

Internal Circulation type

SFK SFU

SFI SCI

DFU

DFI

•Dedicated diameter of screw takes only little space.

•Applicable to those with smaller lead / the outside diameter of the screw

External Circulation type

SFV XFV

DFV

•Economy

•Applicable to larger lead and diameter.

•Applicable for high loading purpose.

End-caps Circulation type

SFS SFY

DFS

•Suitable for high speed positioning

Size Table of DFU Screws



Model No.

d

l

Da

Dimension

Load Rating



D

A

B

L

W

H

X

Q

n

Ca(kgf)

Coa(kgf)



DFU 1604-3

16

4

2.381

28

48

10

80

38

40

5

M6x1

1x3

488

940

DFU 1605-4

5

3.175

28

48

10

100

38

40

5

M6x1

1x4

1123

2288

DFU 1610-3

10

3.175

28

48

10

118

38

40

5

M6x1

1x3

716

1232



DFU 2004-3

20

4

2.381

36

58

10

80

47

44

6.6

M6x1

1x3

541

1187

DFU 2005-4

5

3.175

36

58

10

101

47

44

6.6

M6x1

1x4

1268

2291



DFU 2504-3

25

4

2.381

40

62

10

80

51

48

6.6

M6x1

1x3

305

1534

DFU 2505-4

5

3.175

40

62

10

101

51

48

6.6

M6x1

1x4

1420

3872

DFU 2510-4

10

4.762

40

62

12

145

51

48

6.6

M6x1

1x4

2246

4157

DFU 3205-4

32

5

3.175

50

80

12

102

65

62

9

M6x1

1x4

1604

5103



DFU 3210-4

10

6.35

50

80

12

162

65

62

9

M6x1

1x4

3924

9152



DFU 4005-4

40

5

3.175

63

93

14

105

78

70

9

M8x1

1x4

1786

6512



DFU 4010-4

10

6.35

63

93

14

165

78

70

9

M8x1

1x4

4414

11969



DFU 5010-4

50

10

6.35

75

110

16

171

93

85

11

M8x1

1x4

4947

15488



DFU 6310-4

63

10

6.35

90

125

18

182

108

95

11

M8x1

1x4

5586

20417



DFU 6320-4

20

9.525

95

135

20

290

115

100

13.5

M8x1

1x4

9397

28512



DFU 8010-4

80

10

6.35

105

145

20

182

125

110

13.5

M8x1

1x4

6217

26049



DFU 8020-4

20

9.525

125

165

25

295

145

130

13.5

M8x1

1x4

10665

38018



Note:with sign ☆ can poduce left helix
