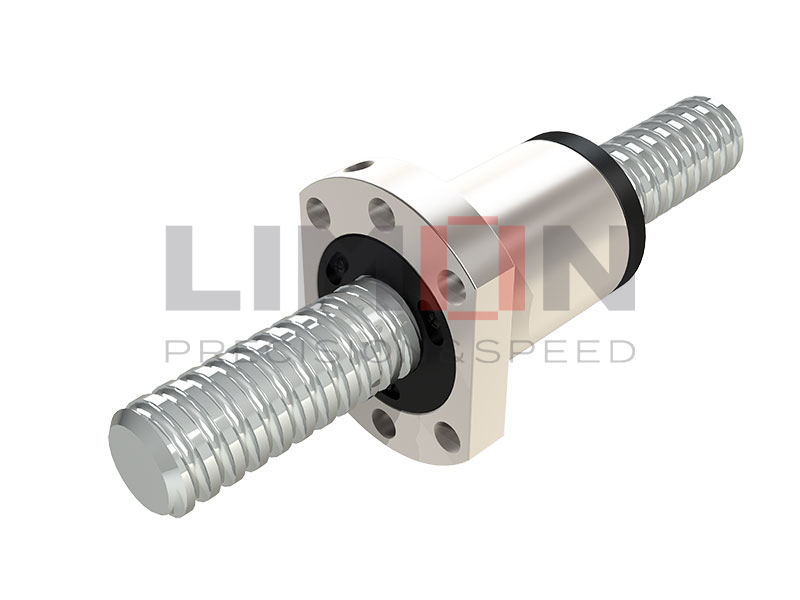

SFS Ball Screw Nut

- Ball Screw Nut -


SFS Series

Applicable industries:Linear actuator, electronic industry, Automation industry, CNC machine, Semi-conductor industry, Industrial machine, Medical industry, Green energy industry, Machine tool, Automated storage and retrieval system and etc.

Features:
(1) High sensitivity & Reliability
LIMON applies stringent quality control standards on every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.
(2) Small friction & Smooth Operation
The high efficiency of ball screw is vastly superior than conventional screws. It takes less than 30% torque to make the linear motion into rotary motion.
(3) High Rigidity and Preload
The ball screw of LIMON is designed with Gothic arch groove, which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.
(4) High transmission efficiency
(5) Low noise
(6) Long service life
(7) Eliminate axial clearance and improve axial stiffness.


Description

Circulation type

Model

Characteristic

Single

Nut

Double Nuts

Internal Circulation type

SFK SFU

SFI SCI

DFU

DFI

•Dedicated diameter of screw takes only little space.

•Applicable to those with smaller lead / the outside diameter of the screw

External Circulation type

SFV XFV

DFV

•Economy

•Applicable to larger lead and diameter.

•Applicable for high loading purpose.

End-caps Circulation type

SFS SFY

DFS

•Suitable for high speed positioning

Size Table of SFS Screws

Model No.

d

l

Da

Dimension

Load Rating

D

A

B

L

W

H

X

Q

n

Ca(kgf)

Coa(kgf)

SFS1205-2.8

12

5

2.5

24

40

10

30

32

30

4.5

M6x1

2.8x1

661

1316

SFS1210-2.8

10

2.5

24

40

10

42

32

30

4.5

M6x1

2.8x1

642

1287

SFS1605-3.8

15

5

2.778

28

48

10

31

38

40

5.5

M6x1

3.8x1

1112

2507

SFS1610-2.8

10

2.778

28

48

10

42

38

40

5.5

M6x1

2.8x1

839

1821

SFS1616-1.8

16

2.778

28

48

10

43

38

40

5.5

M6x1

1.8x1

552

1137

SFS1616-2.8

16

2.778

28

48

10

59

38

40

5.5

M6x1

2.8x1

808

1769

SFS1620-1.8

20

2.778

28

48

10

50

38

40

5.5

M6x1

1.8x1

554

1170

SFS2005-3.8

20

5

3.175

36

58

10

33

47

44

6.6

M6x1

3.8x1

1484

3681

SFS2010-3.8

10

3.175

36

58

10

52

47

44

6.6

M6x1

3.8x1

1516

3833

SFS2020-1.8

20

3.175

36

58

10

52

47

44

6.6

M6x1

1.8x1

764

1758

SFS2020-2.8

20

3.175

36

58

10

72

47

44

6.6

M6x1

2.8x1

1118

2734

SFS2505-3.8

25

5

3.175

40

62

10

33

51

48

6.6

M6x1

3.8x1

1650

4658

SFS2510-3.8

10

3.175

40

62

12

52

51

48

6.6

M6x1

3.8x1

1638

4633

SFS2520-2.8

20

3.969

40

62

12

72

51

48

6.6

M6x1

2.8x1

1206

2695

SFS2525-1.8

25

3.175

40

62

12

60

51

48

6.6

M6x1

1.8x1

843

2199

SFS2525-2.8

25

3.175

40

62

12

85

51

48

6.6

M6x1

2.8x1

1232

3421

SFS3205-3.8

32

5

3.175

50

80

12

35

65

62

9

M6x1

3.8x1

1839

6026

SFS3210-3.8

31

10

3.969

50

80

12

53

65

62

9

M6x1

3.8x1

2460

7255

SFS3220-2.8

20

3.969

50

80

12

72

65

62

9

M6x1

2.8x1

1907

5482

SFS3232-1.8

32

3.969

50

80

12

78

65

62

9

M6x1

1.8x1

1257

3426

SFS3232-2.8

32

3.969

50

80

12

110

65

62

9

M6x1

2.8x1

1838

5329

SFS4005-3.8

40

5

3.175

63

93

14

39

78

70

9

M8x1

3.8x1

2018

7589

SFS4010-3.8

38

10

6.35

63

93

14

57

78

70

9

M8x1

3.8x1

5035

13943

SFS4020-2.8

20

6.35

63

93

14

78

78

70

9

M8x1

2.8x1

3959

10715

SFS4040-1.8

40

6.35

63

93

14

96

78

70

9

M8x1

1.8x1

2585

6648

SFS4040-2.8

40

6.35

63

93

14

136

78

70

9

M8x1

2.8x1

3780

10341

SFS5005-3.8

50

5

3.175

75

110

15

42

93

85

11

M8x1

3.8x1

2207

9542

SFS5010-3.8

48

10

6.35

75

110

18

57

93

85

11

M8x1

3.8x1

5638

17852

SFS5020-3.8

20

6.35

75

110

18

98

93

85

11

M8x1

3.8x1

5749

18485

SFS5050-1.8

50

6.35

75

110

18

117

93

85

11

M8x1

1.8x1

2946

8749

SFS5050-2.8

50

6.35

75

110

18

167

93

85

11

M8x1

2.8x1

4308

13610
