KBE Series - Linear Bearing

- SME Series -


Linear Bearing

KBE Series

Our standard aluminium slide units with metric dimension, have different series that can widely used in Asia, European and other countries.They have simple installation with screws, good interchangeability, high precision and rigidity, low friction, easy of replacement.

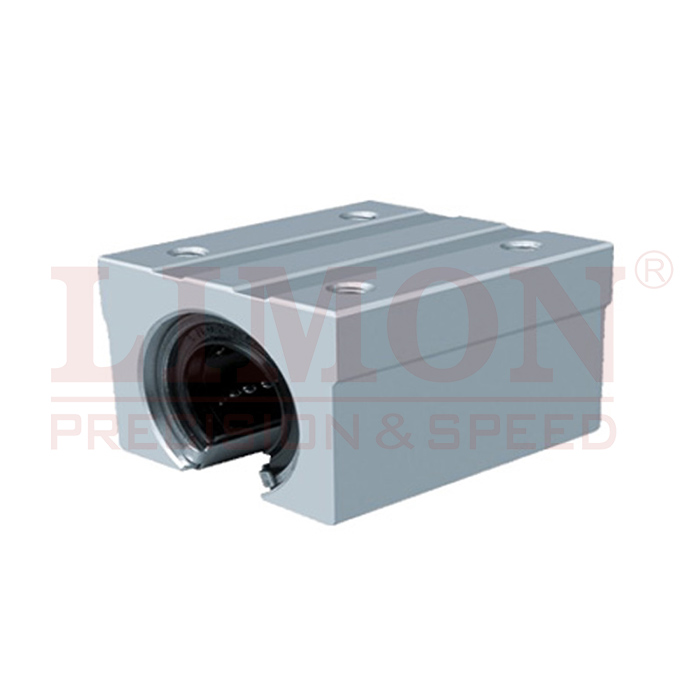

Sliding unit is special designed to convenient the assembly of linear bearing, greatly reduce the mechanical designer's job. It consists of one standard type linear bearing and the aluminium housing, with pre-drilled mounting holes. We use premium grade raw material to make sure our quality at affordable rates, this ideal transmission component for linear motion movement, can be widely used in CNC machines, factory automation, industrial machines, etc. There is wide size range for option, models including (special size has to be customized).


Description

Data Sheet of Linear Bearings KBE Series

Part No. Main Dimensions (mm) Basic Load Rating CN Basic Load Rating CoN Weight (g)
Seal Type Shaft Diameter h D W L H T h1 θ B C Sxe
KBE16UU 16 20 22.5 45 45 33 9 10 80° 32 30 M5x12 774 1180 150
KBE20UU 20 23 24 48 50 39 11 10 60° 35 35 M6x12 882 1370 200
KBE25UU 25 27 30 60 65 47 14 11.5 60° 40 40 M6x12 980 1570 450
KBE30UU 30 33 35 70 70 56 15 14 60° 50 50 M8x18 1570 2740 630
KBE40UU 40 42 45 90 90 72 20 19 60° 65 65 M10x20 2160 4020 1330
KBE50UU 50 53 60 120 110 92 25 23 60° 94 80 M10x20 3820 7940 3000
