Belt Driven Linear Actuator

- Y Series -

Open type

Classification: Open type
Drive type: Belt drive
Sealed type: General environment, semi-sealed
Repetitive accuracy: ±0.05mm
Maximum outline size of main section: 105*66mm.102*70mm.135*93mm.170*108mm.230*134mm
Strong carrying capacity
High-speed transplanting
Easy assembly and operation
Long stroke can be customized


Close type

Classification: Close type
Drive type: Belt drive
Sealed type: Clean room environment, fully enclosed
Repetitive accuracy: ±0.05mm
Maximum outline size of main section: 109*82.5mm.135*91mm.170*107mm
Strong carrying capacity
High-speed transplanting
Easy assembly and operation
Long stroke can be customized



BELT DRIVEN TYPE

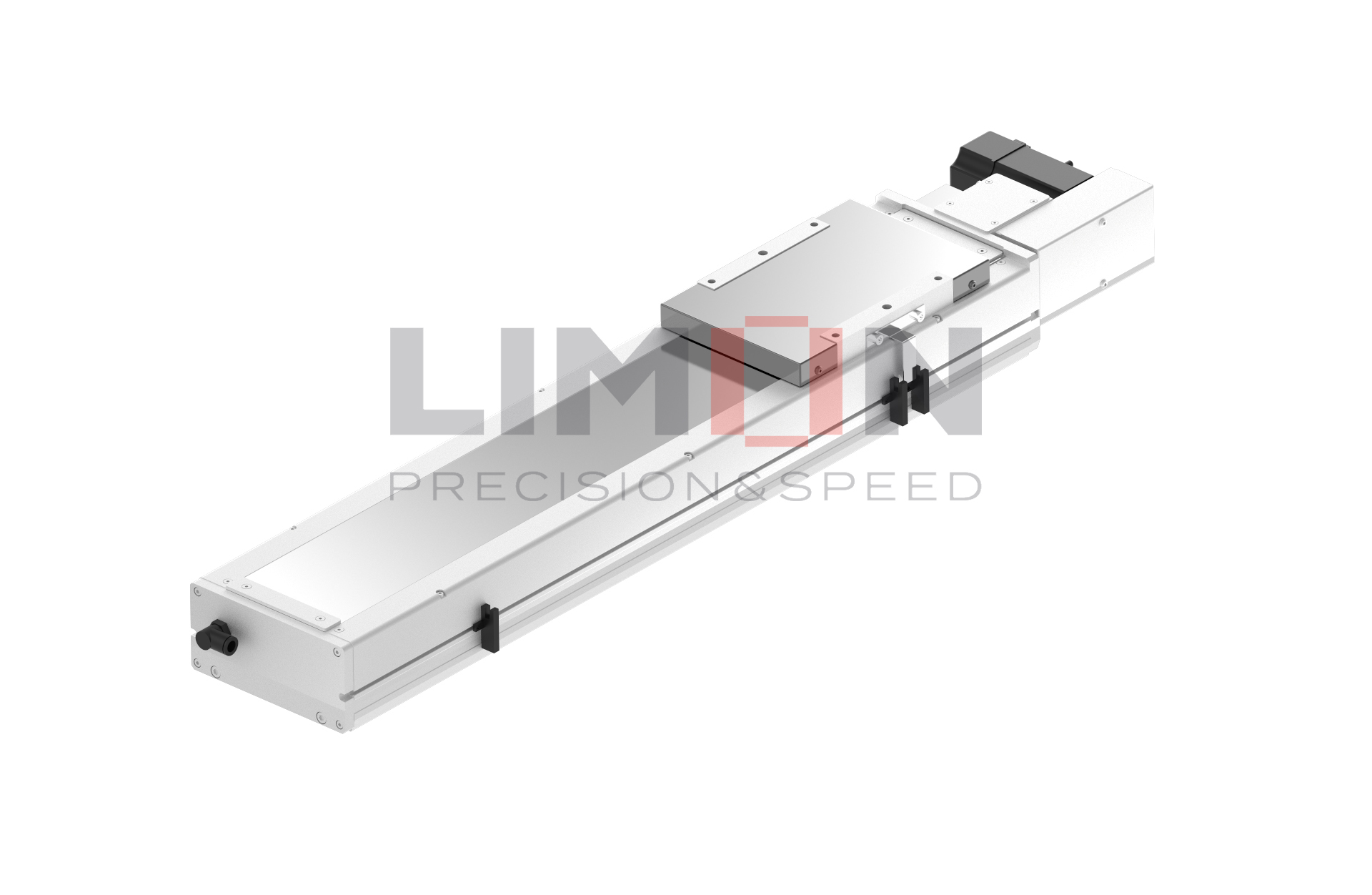

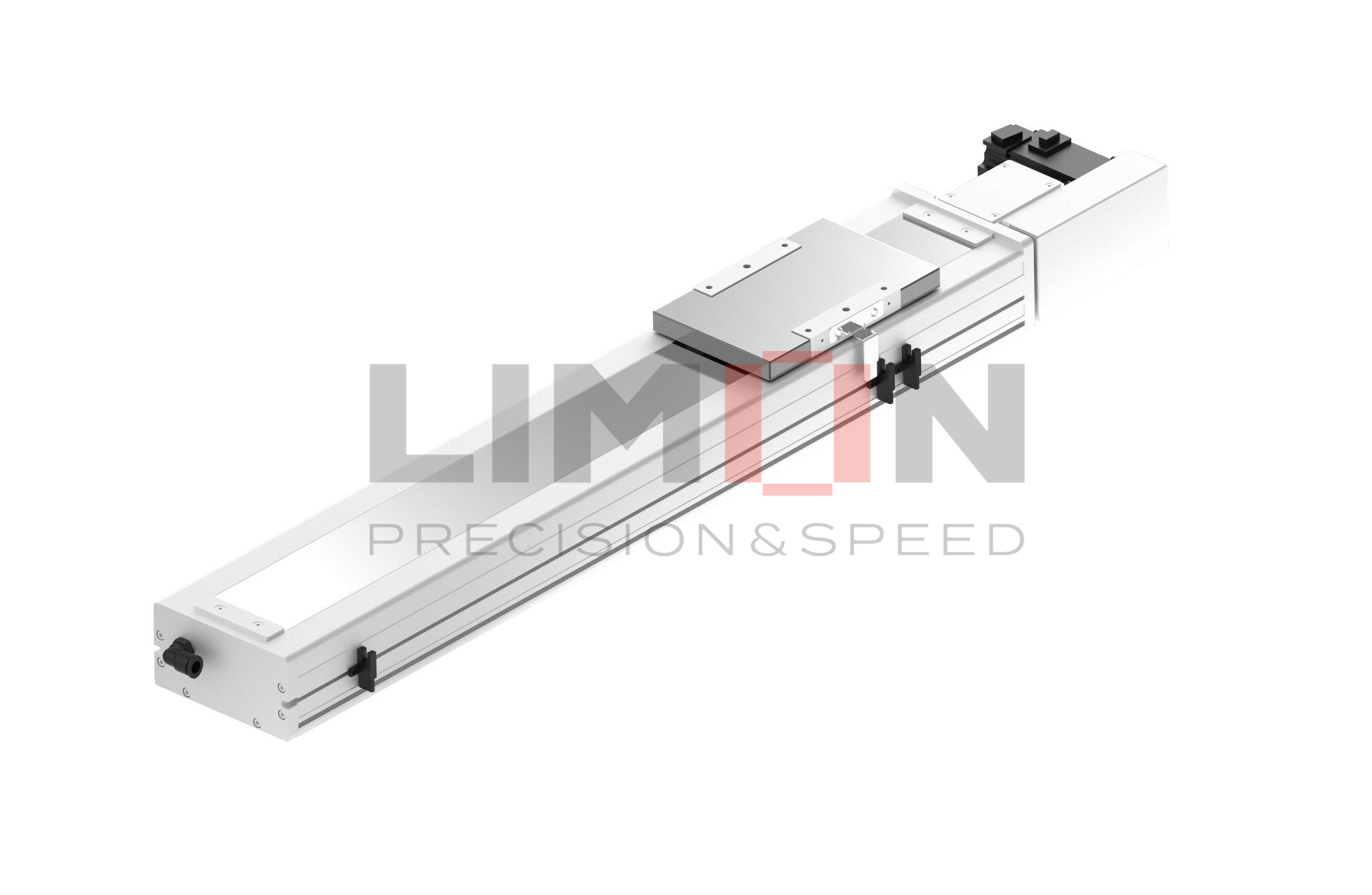

Close type: YTC110/135/170

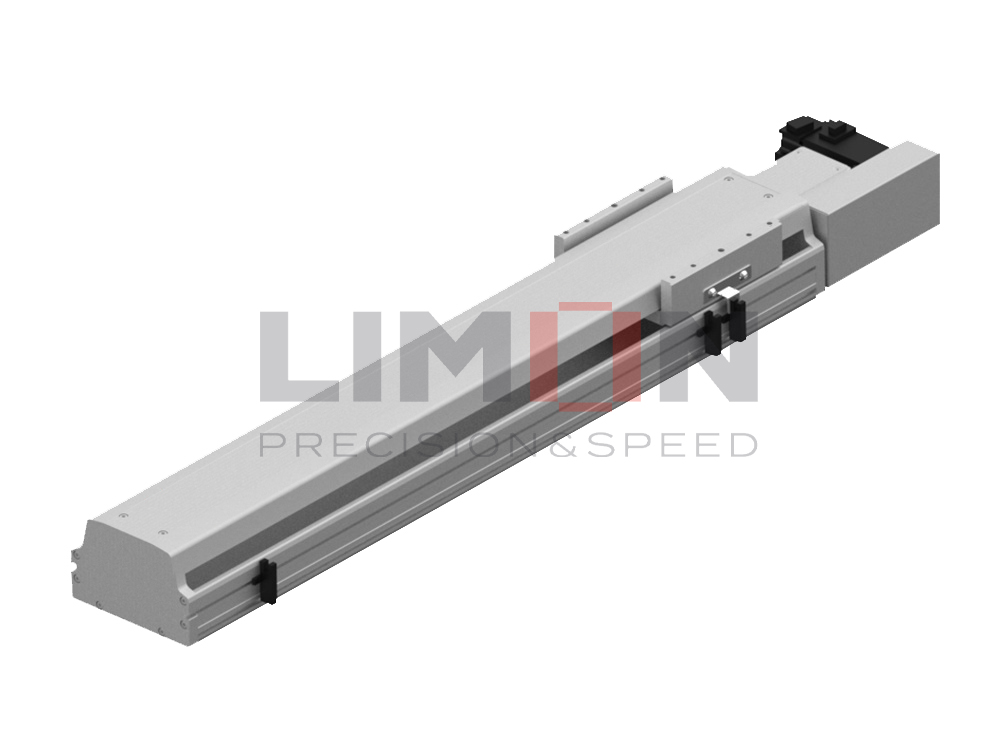

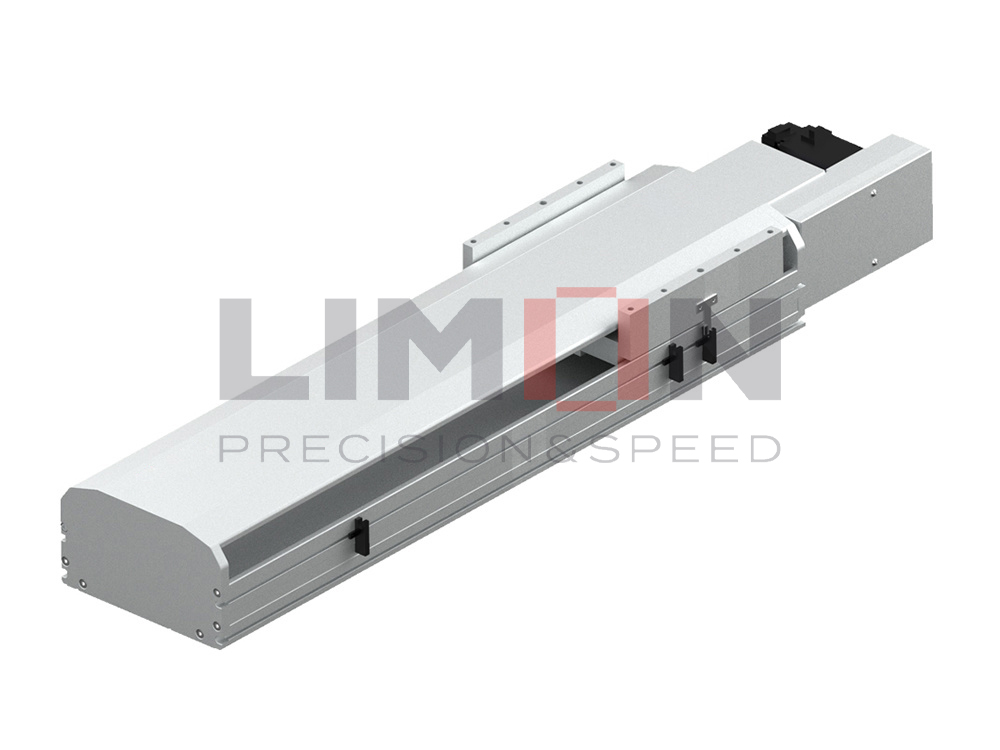

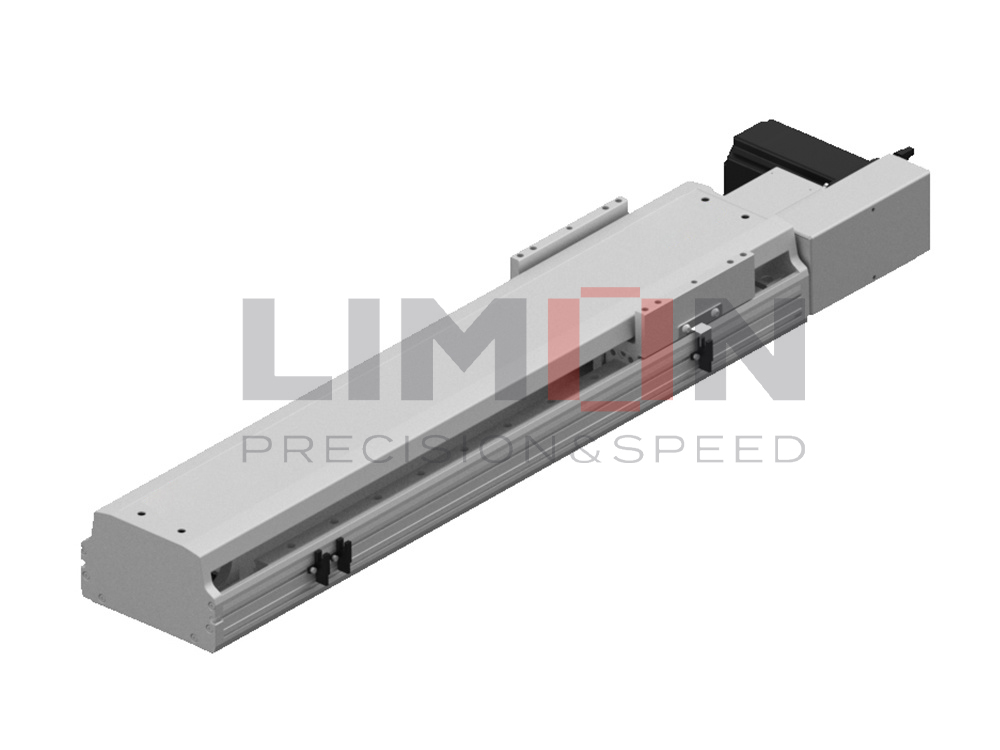

Open type: YTO100/110/135/135M/170/220

BELT DRIVEN TYPE:
Repeated positioning accuracy: 0.01mm
Most of the products can be installed with the same hole position as YAMAHA, which can be exchanged with several Taiwanese brands
then, strength of angular contact bearing increases by matching with FK ball screw support.
The optimal design of cover is to avoid the over length hanging down
The belt’s features are the same as the screw type. And we provide the reducer device as the standard product, in this way, our customer can save the cost .
Industrial: LCD panel manufacturing, photovoltaic industry, white goods production line, lithium battery manufacturing, automation industrial.
This series is uniaxial modules. While providing uniaxial modules, LIMON can also provide multi-axis combined projects, including necessary connecting parts, motor drive, reducer, drag chain belt, etc. Besides, our technicians also participates in customer projects, calculates design strength, and provides customers with a complete set of solutions.
