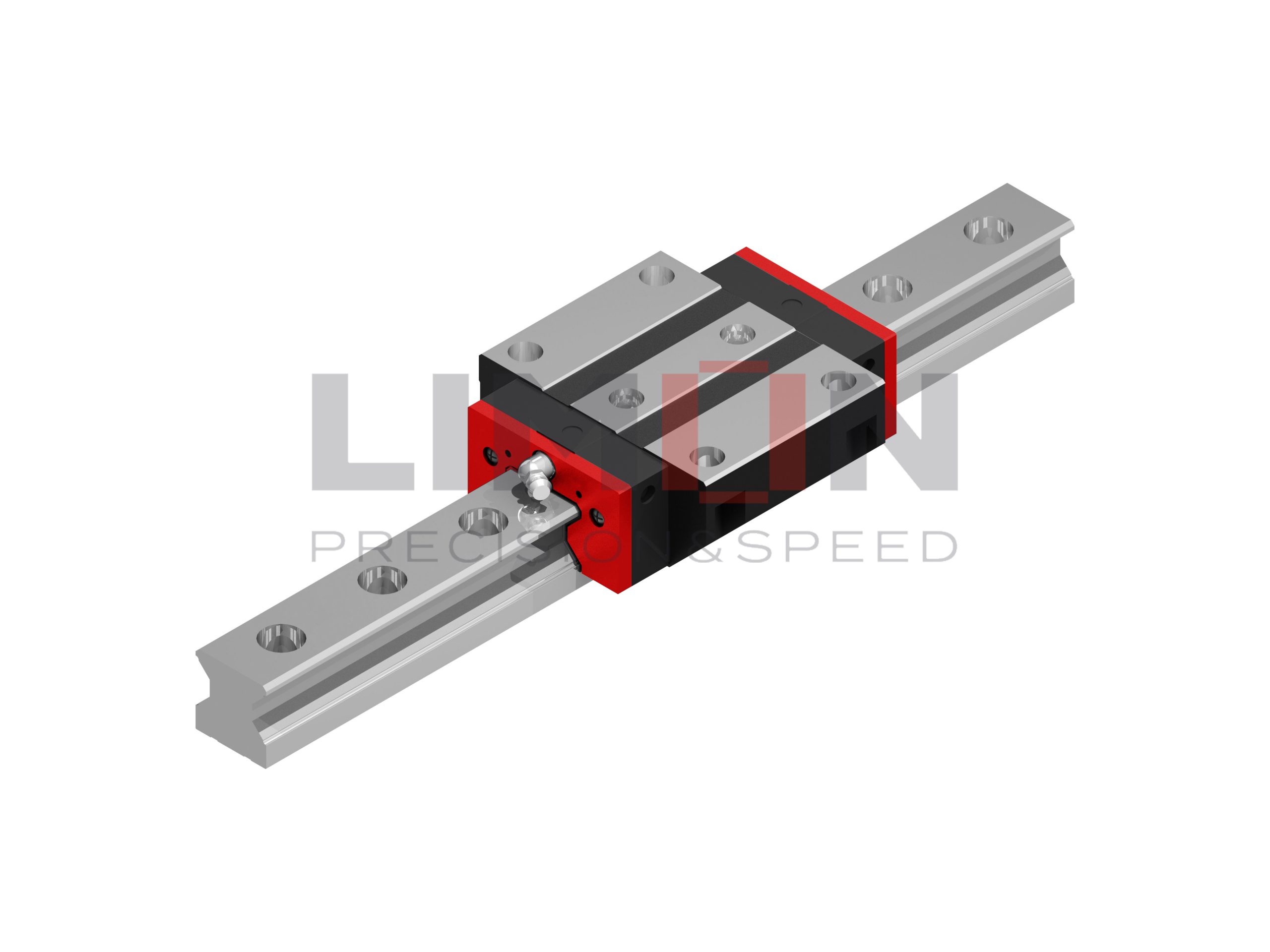

R Series-High Rigidity Roller Type Linear Guideways

- High Rigidity Roller Type Linear Guideways -


R Series

RW-CC/RW-HC

Applicable industries of R series:
CNC machining centers,Heavy duty cutting machine,CNC grinding machine

(1) Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the R series linear guideway to offer smoother linear motion.
(2)Super high rigidity
The R series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area than balls so that the roller guideway features higher load capacity and greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
(3)Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the R series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. The R series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
(4)Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore, stress concentration was reduced significantly and the R series offers longer running life. The nominal life of R series can be calculated by using Eq.


Description

Model NO.

Dimensions of
Assembly(mm)

Dimensions of
Block (mm)

Dimensions of
Rail (mm)

Mounting Bolt for Rail

Basic Dynamic Load Rating

Basic Static Load Rating

Static Rated Moment

Weight

MR
kN-m

MP
kN-m

MY
kN-m

Block
kg

Rail
kg/m

H

H1

N

W

B

B1

C

C1

L1

L

K1

K2

G

M

T

T1

H2

H3

WR

HR

D

h

d

P

E

(mm)

C(kN)

C0(kN)

RW15CC

24

4

16

47

38

4.5

30

26

45

68

11.4

4.7

5.3

M5

6

6.95

3.6

6.1

15

16.5

7.5

5.7

4.5

30

20

M4x16

11.3

24.0

0.311

0.173

0.173

0.22

1.8

RW20CC

30

5

21.5

63

53

5

40

35

57.5

86

13.8

6

5.3

M6

8

10

4.3

4.3

20

21

9.5

8.5

6

30

20

M5x20

21.3

46.7

0.647

0.460

0.46

0.47

2.76

RW20HC

77.5

106

23.8

26.9

63.0

0.872

0.837

0.837

0.63

RW25CC

36

5.5

23.5

70

57

6.5

45

40

64.5

97.9

15.75

7.25

12

M8

9.5

10

6.2

6

23

23.6

11

9

7

30

20

M6x20

27.7

57.1

0.758

0.605

0.605

0.72

3.08

RW25HC

81

114.4

24

33.9

73.4

0.975

0.991

0.991

0.91

RW30CC

42

6

31

90

72

9

52

44

71

109.8

17.5

8

12

M10

9.5

10

6.5

7.3

28

28

14

12

9

40

20

M8x25

39.1

82.1

1.445

1.060

1.06

1.16

4.41

RW30HC

93

131.8

28.5

48.1

105.0

1.846

1.712

1.712

1.52

RW35CC

48

6.5

33

100

82

9

62

52

79

124

16.5

10

12

M10

12

13

9

12.6

34

30.2

14

12

9

40

20

M8x25

57.9

105.2

2.17

1.44

1.44

1.75

6.06

RW35HC

106.5

151.5

30.25

73.1

142.0

2.93

2.60

2.60

2.40

RW45CC

60

8

37.5

120

100

10

80

60

106

153.2

21

10

12.9

M12

14

15

10

14

45

38

20

17

14

52.5

22.5

M12x35

92.6

178.8

4.52

3.05

3.05

3.43

9.97

RW45HC

139.8

187

37.9

116.0

230.9

6.33

5.47

5.47

4.57

RW55CC

70

10

43.5

140

116

12

95

70

125.5

183.7

27.75

12.5

12.9

M14

16

17

12

17.5

53

44

23

20

16

60

30

M14x45

130.5

252.0

8.01

5.40

5.40

5.43

13.98

RW55HC

173.8

232

51.9

167.8

348.0

11.15

10.25

10.25

7.61

RW65CC

90

12

53.5

170

142

14

110

82

160

232

40.8

15.8

12.9

M16

22

23

15

15

63

53

26

22

18

75

35

M16x50

213.0

411.6

16.20

11.59

11.59

11.63

20.22

RW65HC

223

295

72.3

275.3

572.7

22.55

22.17

22.17

16.58

 Note: 1. 1kgf = 9.81N





           2. The theoretical dynamic rated load is C100R,if necessary C50R conversion formula is as follwos : C50R = 1.23 x C100R
