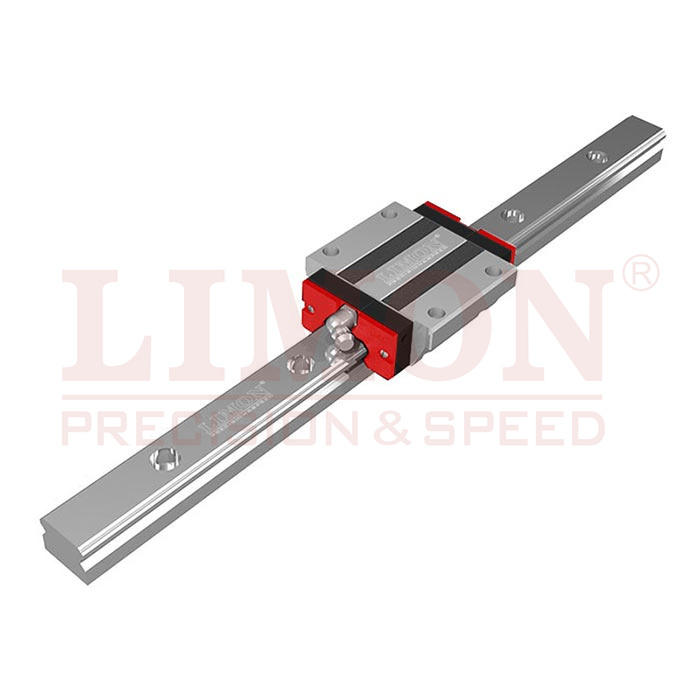

E Series-Low Profile Type Linear Guideways

- Low Profile Type Linear Guideways -


E Series

EW-SA/EW-CA

Applicable industries of E series:
Automatic equipment, Semiconductor equipment, Laser engraving machine, High speed transfer machine,Packing machine,Medical equipment

The design of the E series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracy. Additionally, the lower assembly height and the shorter length make the E series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.


Characteristic:

  • Precision: C, H, P.
  • Size: 15~45.
  • 6 meter guideway available.
  • Various accessories, KK, DD, ZZ.
  • Korean material & Taiwan equipment.
  • Strict quality control

Description

Model No.

Dimensions of
Assembly(mm)

Dimensions of
Block (mm)

Dimensions of
Block (mm)

Mounting Bolt for Rail

Basic Dtnamic Load Rating

Basic Static Load Rating

Static Rated Moment

Weight

MR
kN-m

MP
kN-m

MY
kN-m

Block
kg

Rail
kg/m

H

H1

N

W

B

B1

C

L1

L

K1

K2

G

M

T

T1

H2

H3

WR

HR

D

h

d

P

E

(mm)

C(kN)

C0(kN)

EW15SA

24

4.5

18.5

52

41

5.5

-

23.1

40.1

14.8

3.5

5.7

M5

5

7

5.5

6

15

12.5

6

4.5

3.5

60

20

M3x16

5.35

9.40

0.08

0.04

0.04

0.12

1.25

EW15CA

26

39.8

56.8

10.15

7.83

19.19

0.13

0.10

0.10

0.21

EW20SA

28

6

19.5

59

49

5

-

29

50

18.75

4.15

12

M6

7

9

6

6

20

15.5

9.5

8.5

6

60

20

M5x16

7.23

12.74

0.13

0.06

0.06

0.19

2.08

EW20CA

32

48.1

69.1

12.3

10.31

21.13

0.22

0.16

0.16

0.32

EW25SA

33

7

25

73

60

6.5

-

35.5

59.1

21.9

4.55

12

M8

7.5

10

8

8

23

18

11

9

7

60

20

M6x20

11.40

19.50

0.23

0.12

0.12

0.35

2.67

EW25CA

35

59

82.6

16.15

16.27

32.40

0.38

0.32

0.32

0.59

EW30SA

42

10

31

90

72

9

-

41.5

69.5

26.75

6

12

M10

7

10

8

9

28

23

11

9

7

80

20

M6x25

16.42

28.10

0.40

0.21

0.21

0.62

4.35

EW30CA

40

70.1

98.1

21.05

23.70

47.46

0.68

0.55

0.55

1.04

EW35SA

48

11

33

100

82

9

-

45

75

28.5

7

12

M10

10

13

8.5

8.5

34

27.5

14

12

9

80

20

M8x25

22.66

37.38

0.53

0.31

0.31

0.84

6.14

EW35CA

50

78

108

20

33.35

64.84

0.98

0.69

0.69

1.45

Note:1 kgf=9.81 N
